Nobsound AD623 Instrumentation Program-controlled Amplifier Module Meter Verstärker Modul
Description
- Low-cost high-precision instrument amplification
- Adjusting gain with only one external resistor
- Gain range: 1~10000,Amplification > 1000
- neat layout and mini size,High-quality materials
- Suitable for student competition and personal project development

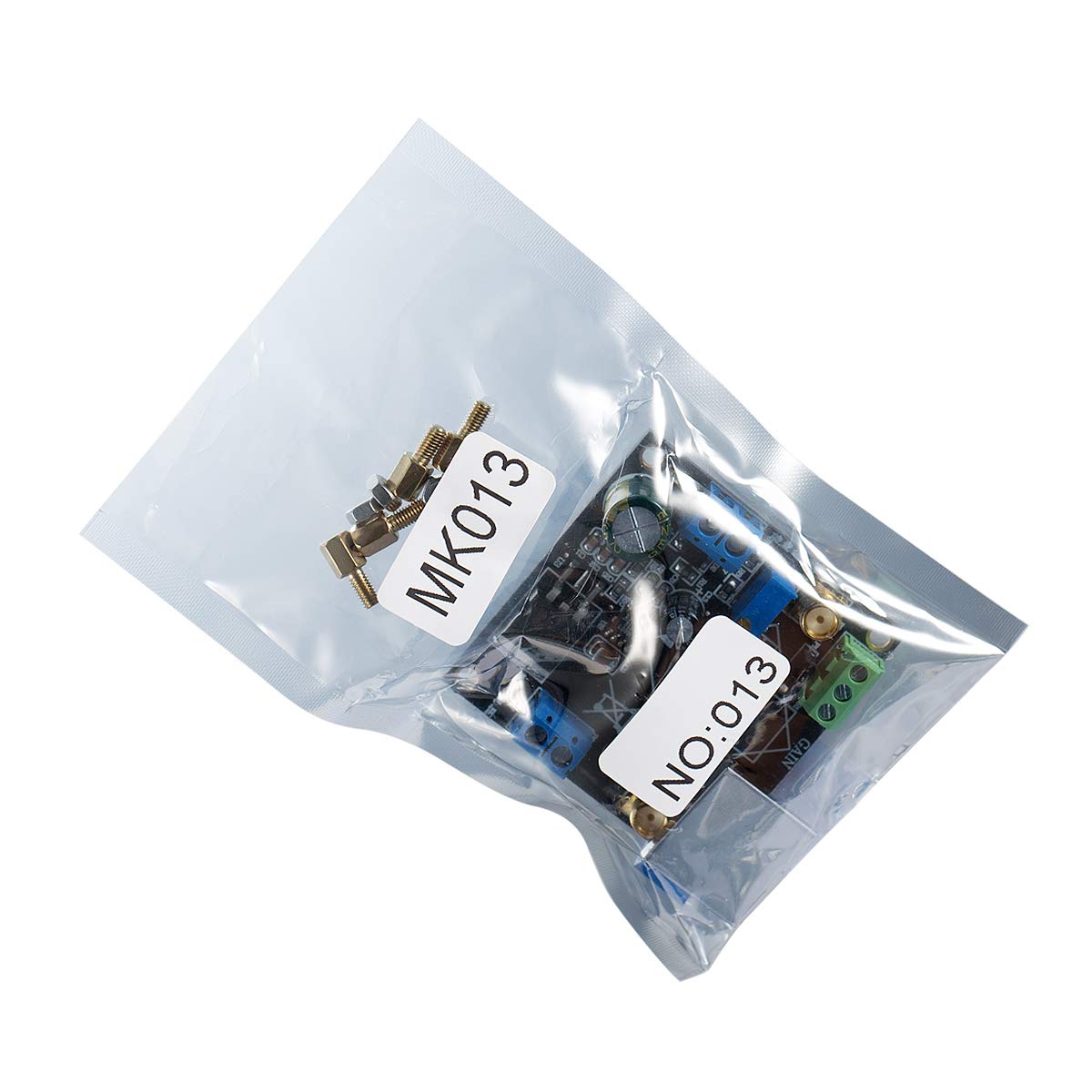

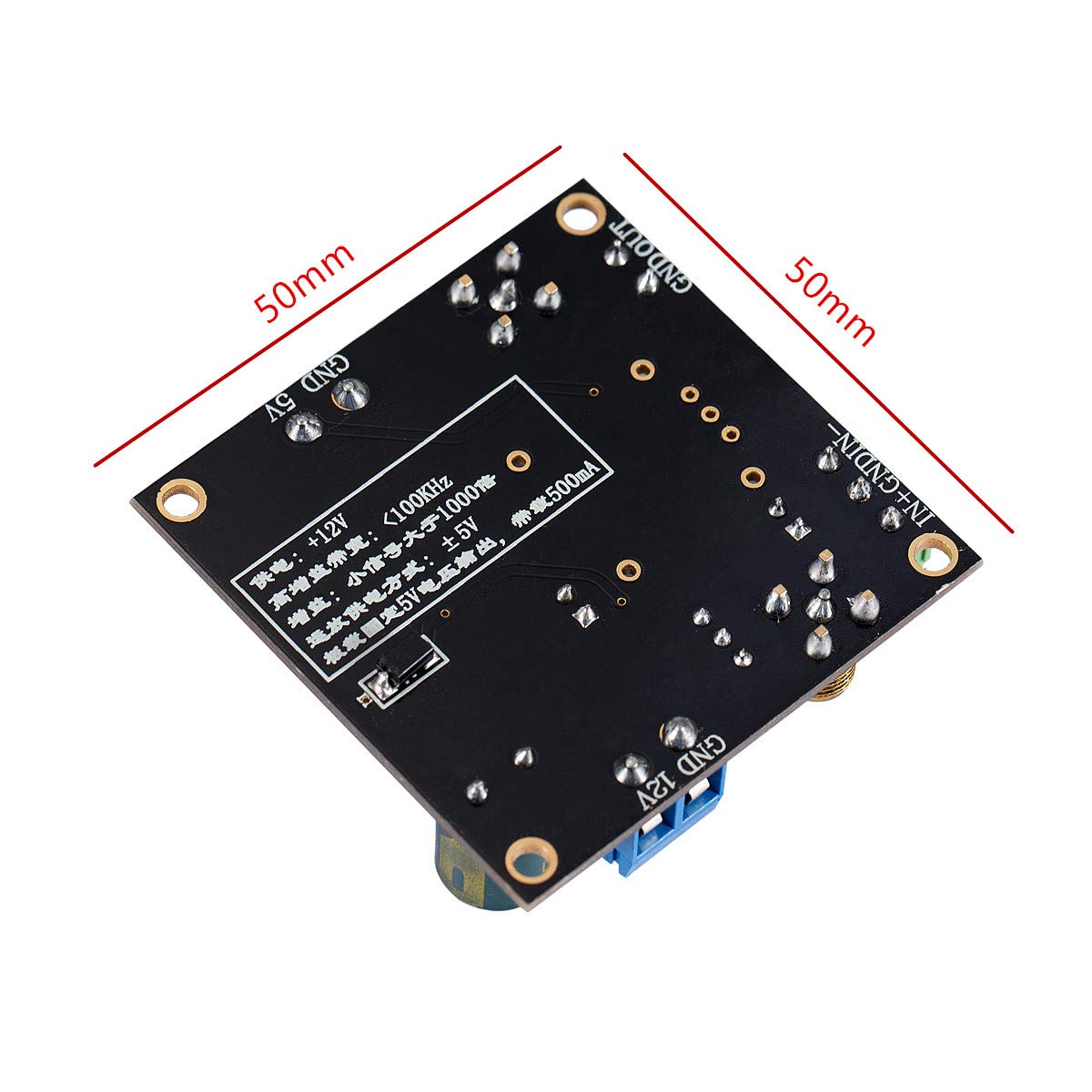

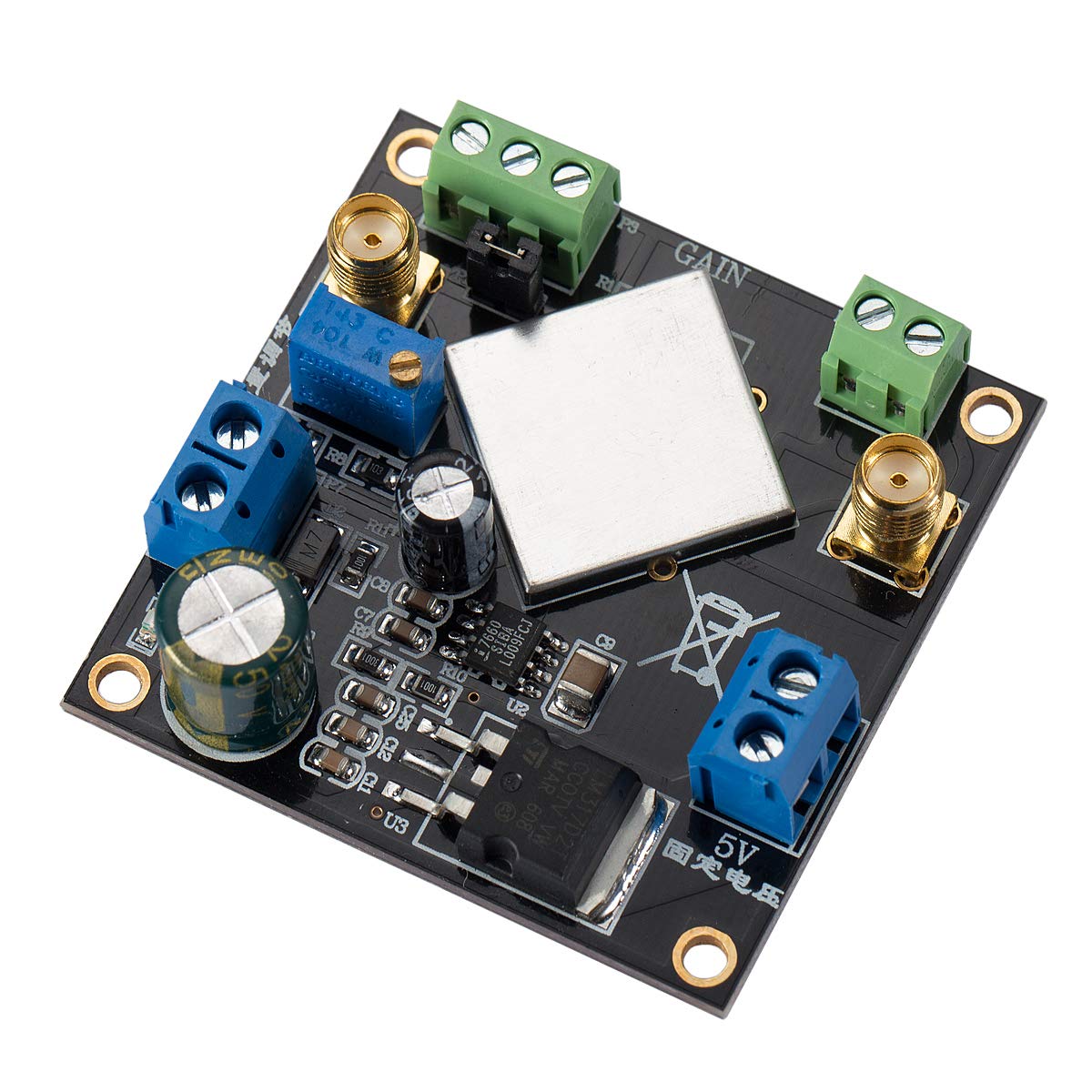

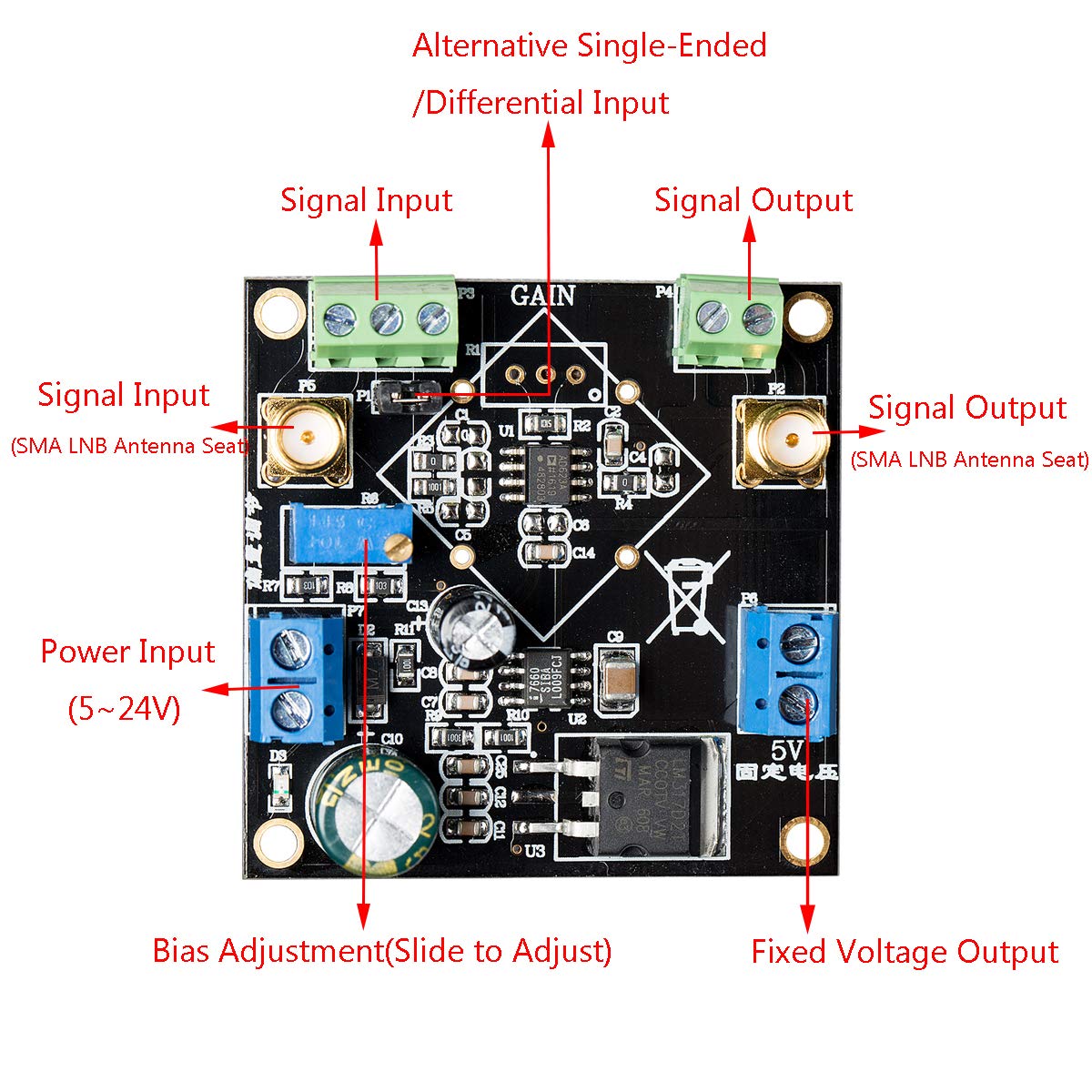

Applications: Weigh scales ECG and medical instrumentation Transducer interface Data acquisition systems Industrial process controls Battery-powered and portable equipment Parameters: Power supply: 5V~24V (recommend single power supply above 12V) Dimensions: 50mm * 50mm Bandwidth: < 50KHz (high gain); > 1MHz(low gain) Input signal type: Sigle-ended / differential signal Maximum amplification: >2000 (recommend using multiple-satge amplification for high gain) Saturation output amplitude: 10Vpp (±5Vpp) for AC peak Fixed output voltage: 5V~10V (default 5V) Package include: 1× Module 1× Shielding cover 1× Adjustable slip
